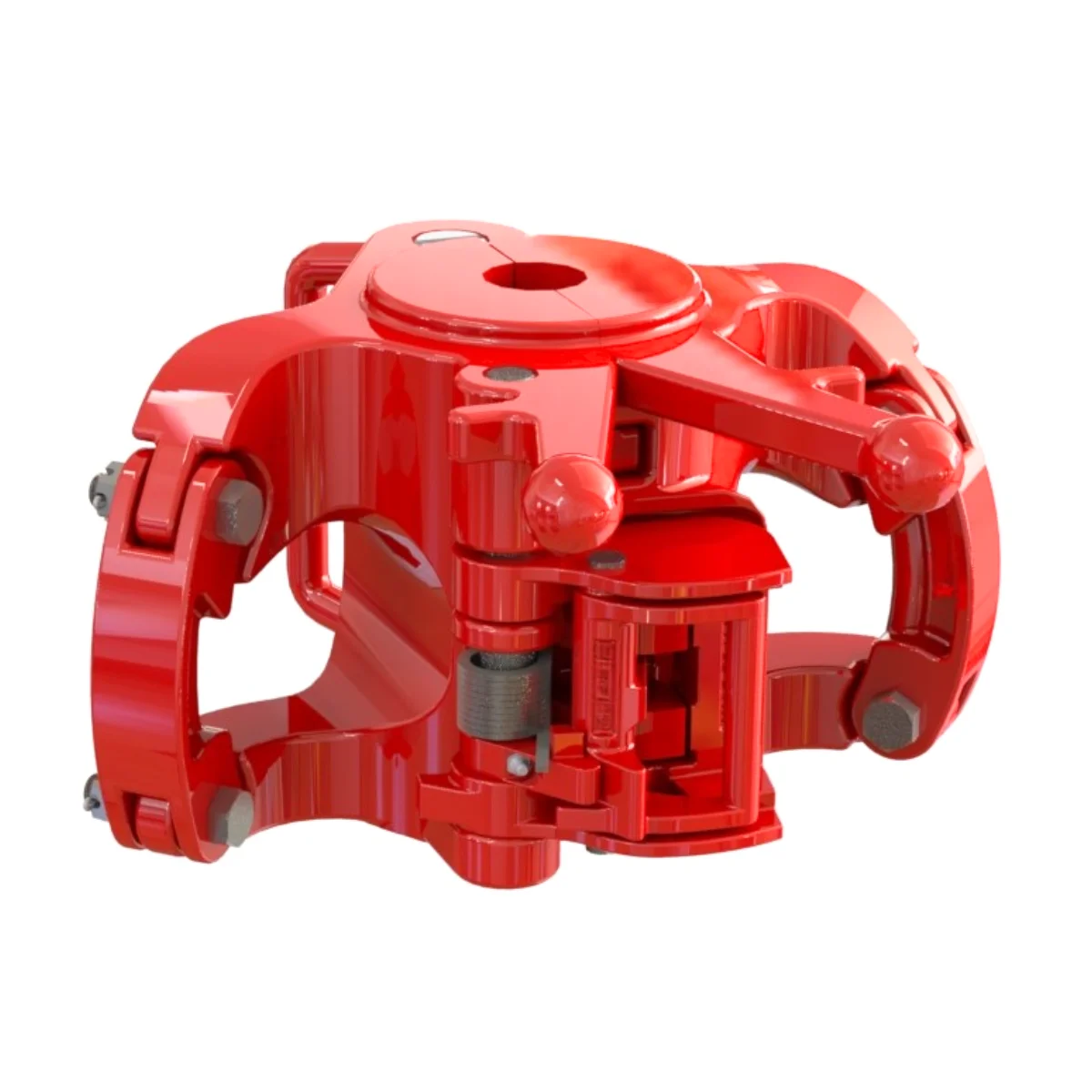

Center Latch 90° Collar Type Elevator
Center Latch 90° Collar Type Elevator
The Spectrum Drilling Tools International RA / MA / AA Center Latch 90° Collar Type Elevators are designed for safe and efficient handling of plain, upset tubing, drill collars, and casing with a square shoulder. Built for reliability, these elevators incorporate a safety double latch system to minimize the risk of accidental opening during operations.
Available in sizes ranging from 2.3/8” to 7”, the RA, MA, and AA series provide load capacities of 125, 150, 250, and 350 tons, making them suitable for a wide range of drilling applications.
Manufactured from high-strength alloy steel, each elevator undergoes rigorous load testing and magnetic particle inspection to ensure maximum durability and performance. Fully API Spec 8C certified, the Spectrum Drilling Tools International RA / MA / AA Center Latch 90° Collar Type Elevators deliver strength, safety, and dependable performance for demanding oilfield operations.
Features & Benefits
- Spectrum’s Rotary Slip/Drill Pipe Slips are designed to be equivalent to those offered by NOV a well-known manufacturer of oilfield equipment.
- Our Rotary Slips are designed, manufactured, and rigorously tested in accordance with API-7K specifications.
- The slips are hardened and tempered to enhance their durability, increase their lifespan, and provide exceptional strength, which improves their resistance to wear and tear.
- These slips can be used in conjunction with slip bowls to fit 17.1/2″, 20.1/2″, 27.1/2″, and 37.1/2″ master bushings.
- The slips come with a taper of 4 inches per foot on the diameter, as per the API-7K specification.
- The inserts can be replaced at the rig site itself in a very short time by simply removing the locking arrangements and retainers.
- The products are manufactured in compliance with HSE (Health, Safety, and Environment) guidelines.
- Easy Installation.
- The products undergo a series of Non-Destructive Testing and Destructive Testing for quality control, ensuring the safety and reliability of the product at the rig site.
- Excellent durability.
- We provide the fastest delivery with a short lead time.
- We maintain a substantial inventory of spares to ensure their availability with very short lead times, minimizing downtime on the rig.
PARTS NUMBER & SIZES
Related Products
| Part No. | Type | Tons | Size Range | Size of Links | Weight |
|---|---|---|---|---|---|
25462 | RA | 125 | 2.3/8″ – 3.1/2″ | 1.3/4″ – 2.3/4″ | 158 |
25459 | RA | 150 | 2.3/8″ – 4.1/2″ | 1.3/4″ – 2.3/4″ | 220 |
13373 | MAA | 250 | 3.1/2″ – 7″ | 2.1/4″ – 3.1/2″ | 352 |
12942 | AA | 350 | 4.1/2″ – 6.5/8″ | 2.1/4″ – 3.1/2″ | 550 |
