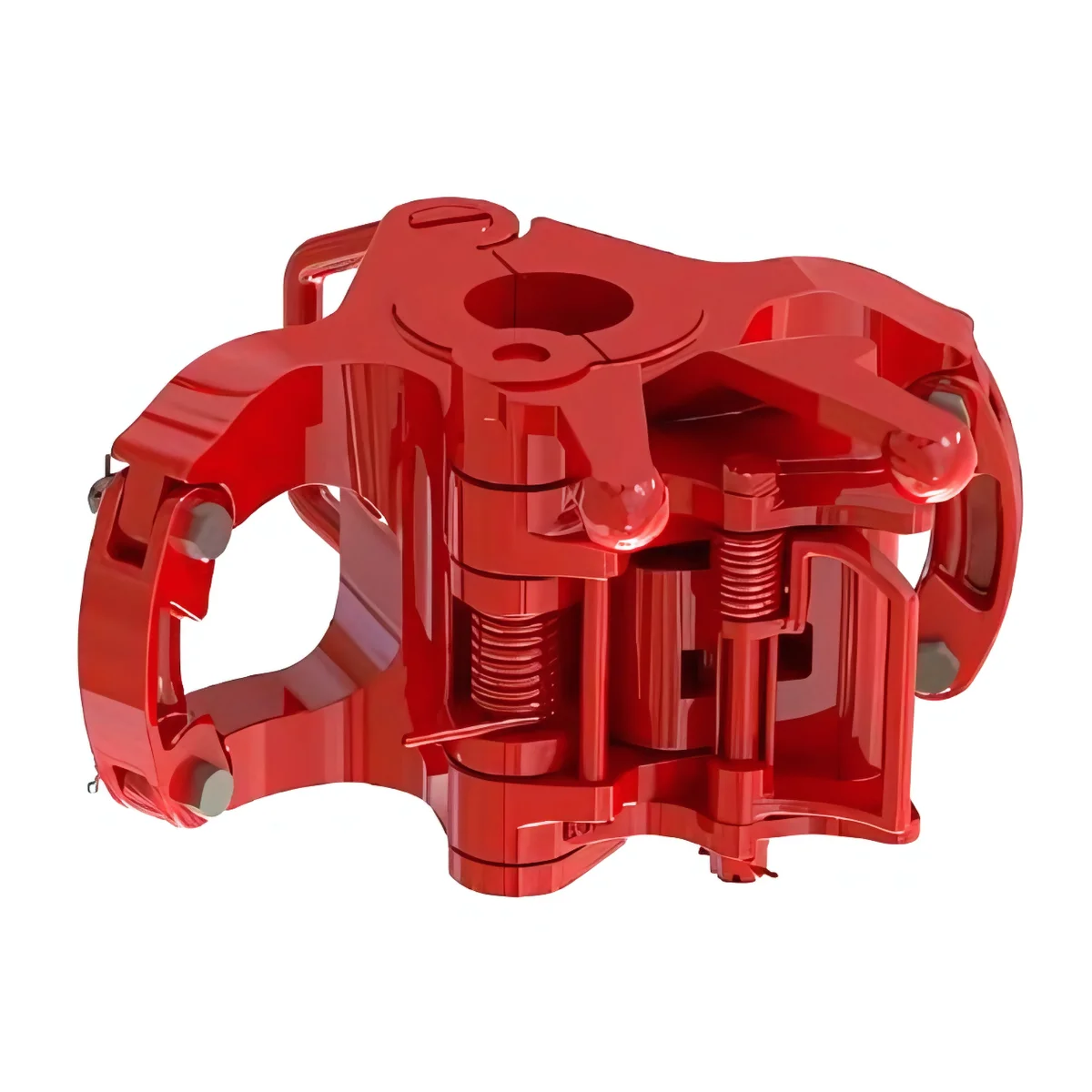

G Center Latch 18° Drill Pipe Elevator
G Center Latch 18° Drill Pipe Elevator
Spectrum Drilling Tools International G Center Latch 18° Drill Pipe Elevator is designed for safe and efficient handling of drill pipe with 18° tapered shoulders. Built with a reliable safety double latch system, these elevators reduce the risk of accidental opening during operations.
Available in sizes from 2.3/8” to 6.5/8”, with load capacities ranging from 100 to 500 tons, they provide versatility across various drilling requirements. Manufactured from high-strength alloy steel, each elevator undergoes rigorous load testing and magnetic particle inspection to ensure durability, safety, and performance.
Certified to API 8C standards, Spectrum Drilling Tools International G Center Latch 18° Drill Pipe Elevator delivers proven strength and reliability for demanding oilfield applications.
Features & Benefits
- Spectrum’s Rotary Slip/Drill Pipe Slips are designed to be equivalent to those offered by NOV a well-known manufacturer of oilfield equipment.
- Our Rotary Slips are designed, manufactured, and rigorously tested in accordance with API-7K specifications.
- The slips are hardened and tempered to enhance their durability, increase their lifespan, and provide exceptional strength, which improves their resistance to wear and tear.
- These slips can be used in conjunction with slip bowls to fit 17.1/2″, 20.1/2″, 27.1/2″, and 37.1/2″ master bushings.
- The slips come with a taper of 4 inches per foot on the diameter, as per the API-7K specification.
- The inserts can be replaced at the rig site itself in a very short time by simply removing the locking arrangements and retainers.
- The products are manufactured in compliance with HSE (Health, Safety, and Environment) guidelines.
- Easy Installation.
- The products undergo a series of Non-Destructive Testing and Destructive Testing for quality control, ensuring the safety and reliability of the product at the rig site.
- Excellent durability.
- We provide the fastest delivery with a short lead time.
- We maintain a substantial inventory of spares to ensure their availability with very short lead times, minimizing downtime on the rig.
PARTS NUMBER & SIZES
| Part No. | Type | Tons | Size Range | Size of Links | Weight |
|---|---|---|---|---|---|
30157 | MG | 100 | 2.3/8″ – 5″ | 1.3/4″ – 2.3/4″ | 235 |
30156 | RG | 150 | 2.3/8″ – 3.1/2″ | 1.3/4″ – 2.3/4″ | 330 |
30155 | RG | 150 | 4″ – 5.1/2″ | 1.3/4″ – 2.3/4″ | 430 |
13884 | MGG | 175 | 2.7/8″ – 5″ | 1 3/4″ – 2 3/4″ | 520 |
35005 | MGG | 250 | 2.7/8″ – 5.1/2″ | 2.1/4″ – 3.1/2″ | 571 |
31068 | GG | 350 | 4″ – 5.7/8″ | 2.1/4″ – 3.1/2″ | 734 |
70013 | HGG | 500 | 4″ – 6.5/8″ | 4″ – 6.5/8″ | 2.1/4″ – 3.1/2″ |
