The Spectrum Drilling Tools Hinged Casing Spider is designed to deliver safe, efficient, and reliable performance during casing handling operations on the rig floor. Its unique hinged design makes it especially useful in situations where cementing equipment or casing cannot pass through a closed spider or rotary table, ensuring smooth operations without delays. This design also helps avoid placing heavy casing string loads directly on the rotary table bearings, reducing wear and extending the service life of critical rig equipment.

Built for strength and durability, the Hinged Casing Spider is manufactured using premium materials and precision engineering to meet the toughest demands of drilling environments. It is available in multiple load capacities—500 ton, 200 ton, 150 ton, and 100 ton—allowing operators to select the right option for their specific well requirements. Each unit is designed to maintain a firm grip on casing while distributing weight evenly, ensuring maximum safety during heavy-duty handling tasks.

With its proven design and robust performance, the Spectrum Drilling Tools Hinged Casing Spider provides drilling contractors with confidence and efficiency in every operation. It is a trusted solution that enhances rig safety, minimizes downtime, and supports smooth casing operations across a wide range of applications.

Features & Benefits

Design Features
  • Tubing Spiders are crafted, produced, and undergo testing procedures in compliance with the latest API-7K specifications.
  • The body and slip segments of the Tubing Spider are constructed using high-quality alloy steels and precision-machined to exacting tolerances.
  • The Spider Inserts are manufactured from premium-grade steel and undergo case hardening to ensure top-notch quality and extend the product’s lifespan.
  • Pipe Size :  2.3/8” to 7.5/8”
  • Estimated Design life : 7 Years
  • Load Capacity : 200 Ton
Health, Safety and Environment
  • The production of Spiders adheres to the guidelines set forth by Health, Safety, and Environment (HSE) standards.
  • Every Spider undergoes a comprehensive series of both destructive and non-destructive tests to not only meet but also surpass the quality requirements outlined by API standards. This rigorous testing process is in place to guarantee that only high-quality products are delivered to our customers.
Lead Time
  • We provide the fastest delivery with a short lead time.
  • We maintain a substantial inventory of spares to ensure their availability with very short lead times, minimizing downtime on the rig.
Rated Capacity Part No. Description Casing Size (in.) Weight (lbs.)
500 Ton
35401
48” Hinged Spider Casing
48
4 TPR
35402
48” x 42” Reducing Bushing
42
35403
42” Hinged Casing Spider
42
35404
42” x 36” Reducing Bushing
36
35405
36” Hinged Casing Spider
36
35406
36” x 30” Reducing Bushing
30
35407
36” x 24” Reducing Bushing
24
35408
30” Hinged Casing Spider
30
3200
35409
30” x 26” Reducing Bushing
26
650
35410
30” x 24” Reducing Bushing
24
750
35411
30” x 22” Reducing Bushing
22
850
35412
30” x 20” & 18.5/8” Reducing Bushing
20 & 18.5/8
900
35413
30” x 16” Reducing Bushing
16
35414

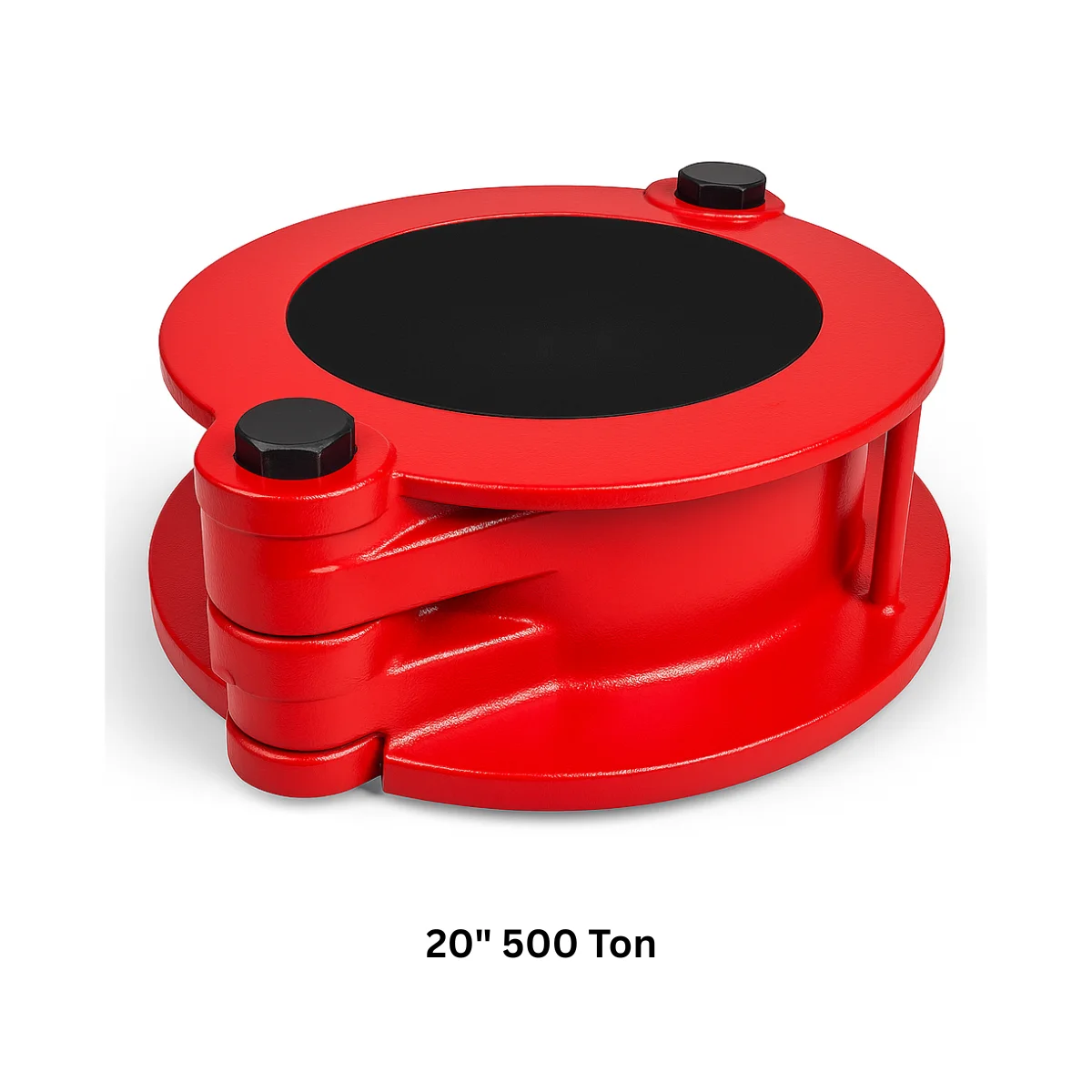

20” & 18.5/8” Hinged Casing Spider
20 & 18.5/8
2200
35415
20” x 16” Reducing Bushing
16
575
35416
20” x 13.3/8” Reducing Bushing
13.3/8 – 11.3/4
890
35417
10.3/4” & 9.5/8” (use with 3312)
10.3/4 – 9.5/8
242
35418
8.5/8” & smaller (use with 3312)
8.5/8 & smaller
465
200 Ton
35301

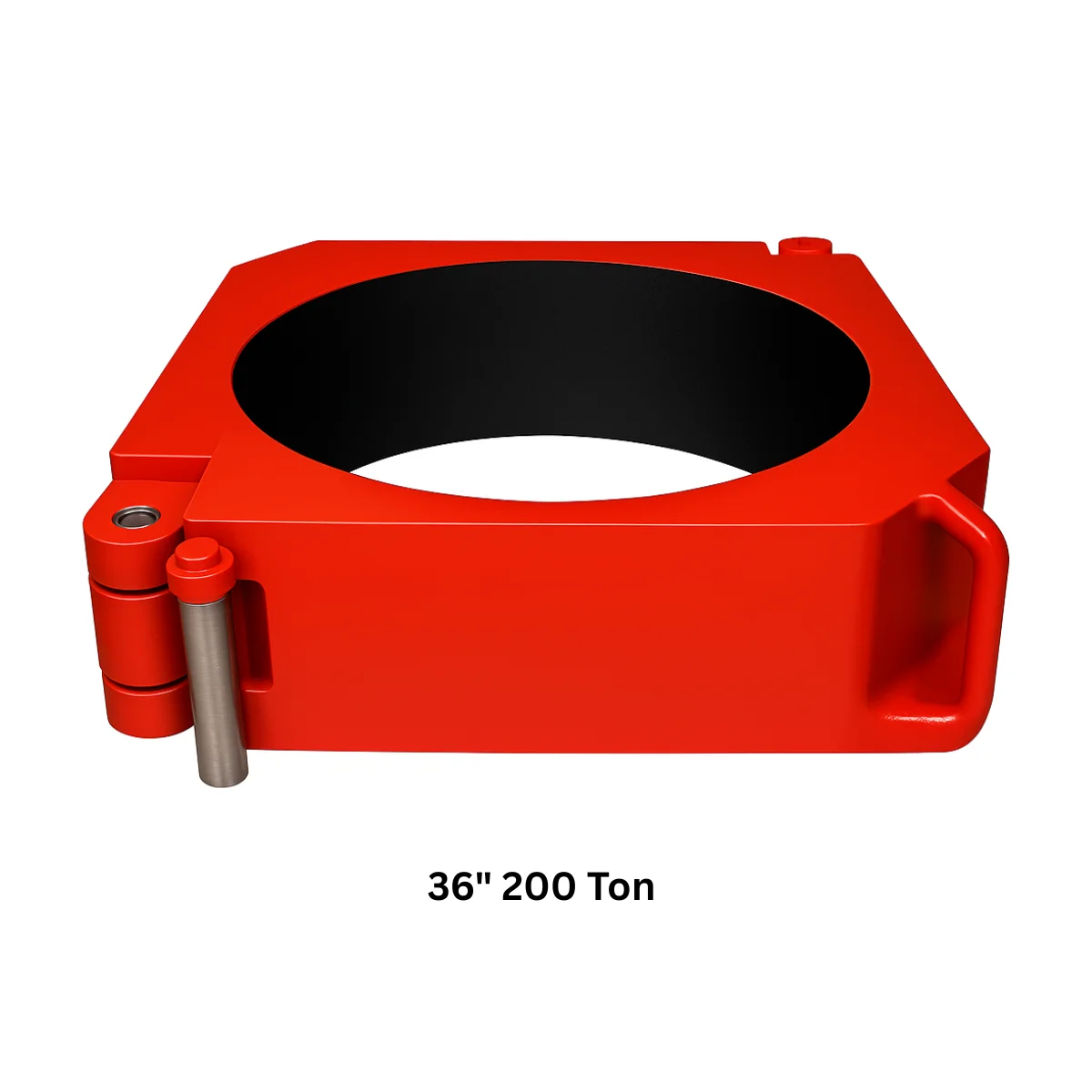

36” Hinged Casing Spider
36
1200
3 TPR
35302
36” x 32” Reducing Bushing
32
700
35303
36” x 30” Reducing Bushing
30
900
35304
36” x 26” Reducing Bushing
26
1100
35305
36” x 24” Reducing Bushing
24
1200
35306
36” x 22” Reducing Bushing
22
1250
35307
36” x 20” & 18.5/8” Reducing Bushing
20 & 18.5/8
1300
35308
30” Hinged Casing Spider
30
1200
35309
30” x 26” Reducing Bushing
26
700
35310
30” x 24” Reducing Bushing
24
750
35311
30” x 22” Reducing Bushing
22
800
35312
30” x 20” & 18.5/8” Reducing Bushing
20 & 18.5/8
900
35313
30” x 16” Reducing Bushing
16
1000
35314
24” Hinged Casing Spider
24
1100
35315
24” x 20” & 18.5/8” Reducing Bushing
20 & 18.5/8
480
35316
24” x 16” Reducing Bushing
16
630
35317
24” x 13.3/8” Reducing Bushing
13.3/8
790
35318
24” x 10.3/4” Reducing Bushing
10.3/4 – 9.5/8
860
35319
20” & 18.5/8” Hinged Casing Spider
20 & 18.5/8
1650
35320
20” x 16” Reducing Bushing
16
400
35321
20” x 13.3/8” Reducing Bushing
13.3/8 – 11.3/4
500
35322
20” x 10.3/4” Reducing Bushing
10.3/4 – 9.5/8
550
35323
20” x 8.5/8” Reducing Bushing
8.5/8 & Smaller
600
35324
13.3/8” Hinged Casing Spider
13.3/8 – 11.3/4
975
35325
13.3/8” x 10.3/4” Reducing Bushing
10.3/4 – 9.5/8
170
35326
13.3/8” x 8.5/8” Reducing Bushing
8.5/8 & Smaller
250
150 Ton, 4 TPR
35401-15
8.5/8” & smaller
8.5/8 & Smaller
504
100 Ton, 4 TPR
35401-10
8.5/8” & smaller
8.5/8 & Smaller
300
