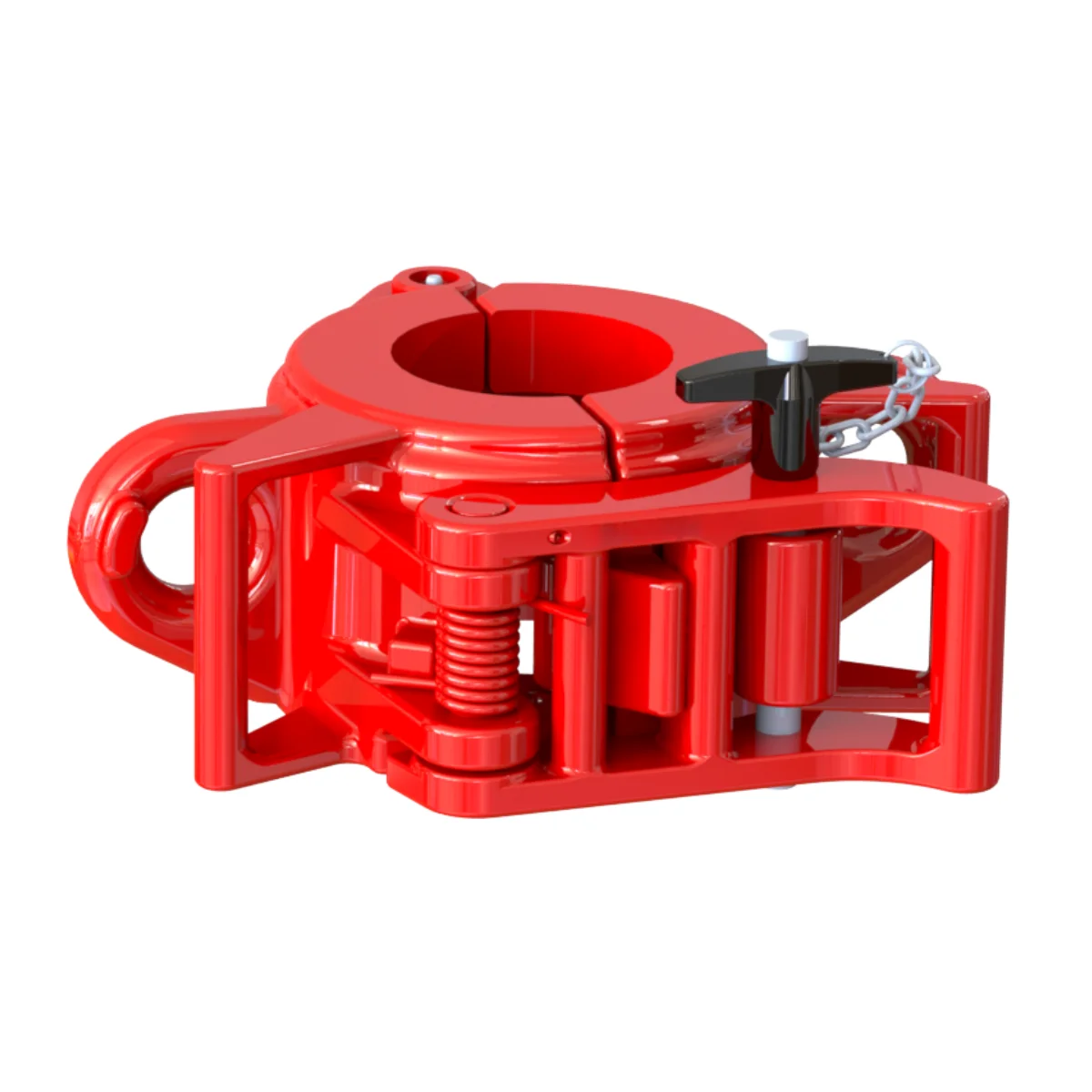

The Spectrum Drilling Tools International Single Joint Elevators are lightweight handling tools designed for safe and efficient lifting of single joints of pipe during drill string assembly. These elevators offer reliable performance and ease of operation, making them a vital tool for oilfield operations.
Available in sizes ranging from 2.3/8″ to 36″ for tubing and casing, and 3.1/2″ to 6.5/8″ for 18° drill pipe, they are adaptable to a wide range of applications. A replaceable bushing style is also offered for tubing and casing sizes from 1.050″ to 6″ and drill pipe sizes from 2.3/8″ to 5.7/8″ (18°), adding further versatility.
With a lifting capacity of 7.5 tons for standard models and 1 ton for bushing-style models, the Spectrum Drilling Tools International Single Joint Elevators are engineered from high-strength alloy steel, load-tested, magnetic particle-inspected, and fully certified to API Spec 8C to ensure durability, reliability, and safety.
Features & Benefits
- Spectrum’s Rotary Slip/Drill Pipe Slips are designed to be equivalent to those offered by NOV a well-known manufacturer of oilfield equipment.
- Our Rotary Slips are designed, manufactured, and rigorously tested in accordance with API-7K specifications.
- The slips are hardened and tempered to enhance their durability, increase their lifespan, and provide exceptional strength, which improves their resistance to wear and tear.
- These slips can be used in conjunction with slip bowls to fit 17.1/2″, 20.1/2″, 27.1/2″, and 37.1/2″ master bushings.
- The slips come with a taper of 4 inches per foot on the diameter, as per the API-7K specification.
- The inserts can be replaced at the rig site itself in a very short time by simply removing the locking arrangements and retainers.
- The products are manufactured in compliance with HSE (Health, Safety, and Environment) guidelines.
- Easy Installation.
- The products undergo a series of Non-Destructive Testing and Destructive Testing for quality control, ensuring the safety and reliability of the product at the rig site.
- Excellent durability.
- We provide the fastest delivery with a short lead time.
- We maintain a substantial inventory of spares to ensure their availability with very short lead times, minimizing downtime on the rig.
PARTS NUMBER & SIZES
| Part No. | Tons | Part No. | Tons | Size Range | Weight |
|---|---|---|---|---|---|
Tubing & Casing | |||||
283 | 7.5 | 283 | 7.5 | 2.3/8″ – 5.1/2″ | 51 |
284 | 7.5 | 284 | 7.5 | 5.3/4″ – 7.5/8″ | 65 |
285 | 7.5 | 285 | 7.5 | 8.5/8″ – 9.7/8″ | 85 |
286 | 7.5 | 286 | 7.5 | 10.3/4″ – 14″ | 115 |
287 | 7.5 | 287 | 7.5 | 16″ – 20″ | 170 |
288 | 7.5 | 288 | 7.5 | 21.1/2″ – 24.1/2″ | 283 |
289 | 7.5 | 289 | 7.5 | 24″ – 30″ | 412 |
200 | 7.5 | – | – | 36″ | 690 |
184B | 1 | – | – | 1.050″ – 6″ | 58 |
18° Drill Pipe | |||||
283 | 7.5 | 283 | 7.5 | 2.3/8″ – 5″ | 52 |
284 | 7.5 | 284 | 7.5 | 5.1/2″ – 6.5/8″ | 63 |
184B | 1 | – | – | 2.3/8″ – 5.7/8″ | 58 |
