Slip Type Elevator – HYT
Slip Type Elevator – HYT

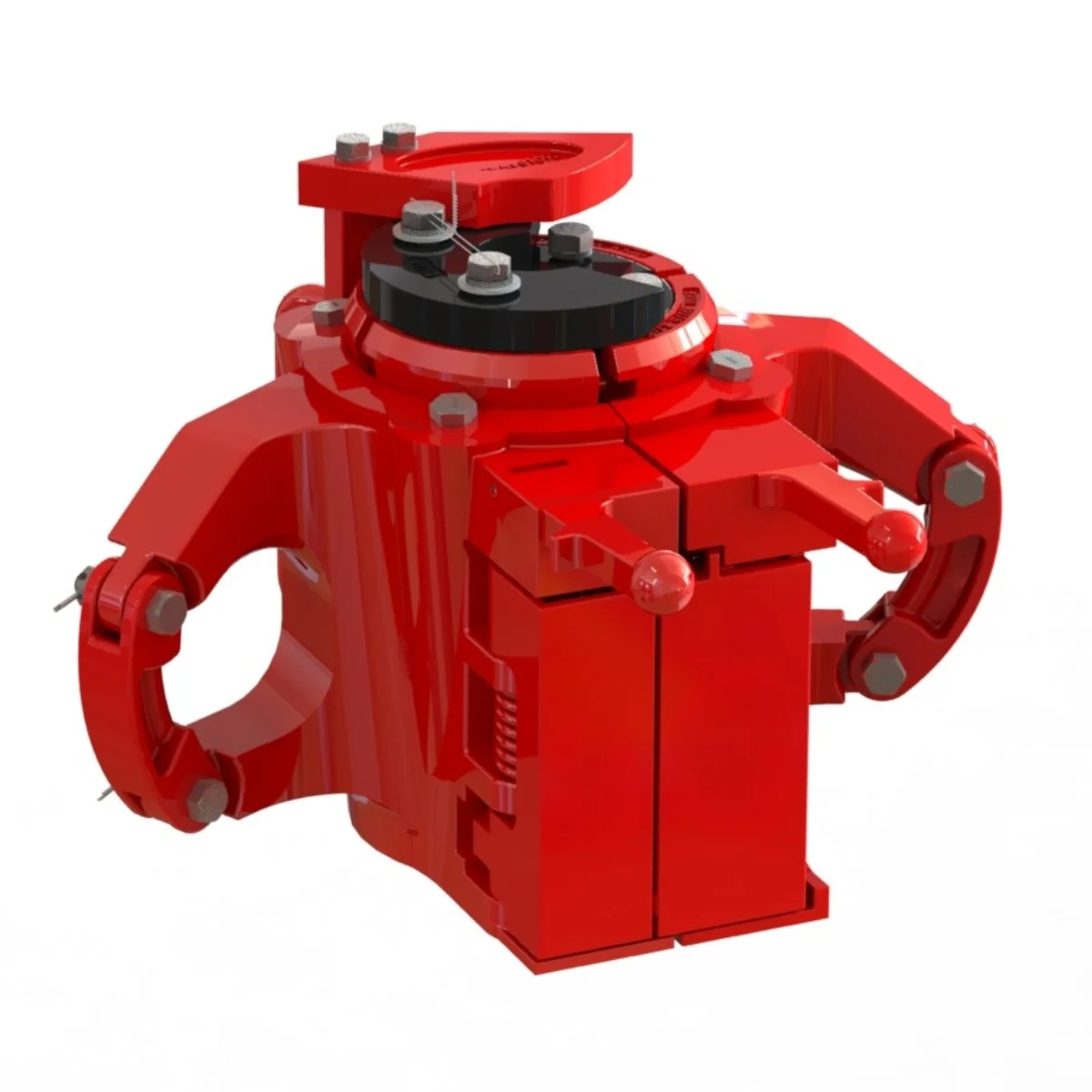

The Slip Type Elevator – HYT Series is engineered for safe, reliable, and efficient handling of tubing and pipe in drilling and well servicing operations. Designed as a combination tool with four slips and reducing inserts, the HYT ensures a secure grip while minimizing marking on the pipe surface.
For operator protection, the HYT elevators incorporate a double latch safety system, significantly reducing the chance of accidental opening during use. With a rated load capacity of 150 tons and a size range from 2.3/8″ to 3.1/2″, they are built for heavy-duty applications in demanding oilfield environments.
Constructed from high-strength alloy steel, each HYT elevator is rigorously load tested and magnetic particle inspected to ensure maximum strength, durability, and performance. Fully API Spec 8C certified, the Slip Type Elevator – HYT delivers trusted safety and reliability for critical drilling operations.
Features & Benefits
- Spectrum’s Rotary Slip/Drill Pipe Slips are designed to be equivalent to those offered by NOV a well-known manufacturer of oilfield equipment.
- Our Rotary Slips are designed, manufactured, and rigorously tested in accordance with API-7K specifications.
- The slips are hardened and tempered to enhance their durability, increase their lifespan, and provide exceptional strength, which improves their resistance to wear and tear.
- These slips can be used in conjunction with slip bowls to fit 17.1/2″, 20.1/2″, 27.1/2″, and 37.1/2″ master bushings.
- The slips come with a taper of 4 inches per foot on the diameter, as per the API-7K specification.
- The inserts can be replaced at the rig site itself in a very short time by simply removing the locking arrangements and retainers.
- The products are manufactured in compliance with HSE (Health, Safety, and Environment) guidelines.
- Easy Installation.
- The products undergo a series of Non-Destructive Testing and Destructive Testing for quality control, ensuring the safety and reliability of the product at the rig site.
- Excellent durability.
- We provide the fastest delivery with a short lead time.
- We maintain a substantial inventory of spares to ensure their availability with very short lead times, minimizing downtime on the rig.
PARTS NUMBER & SIZES
| Part No. | Tons | Size Range | Size of Links | Weight |
|---|---|---|---|---|
29284 | 150 | 2.3/8″ -3.1/2″ | 2.1/4″ – 3.1/2″ | 525 |
| Size | Slip Assembly | Insert | Insert QTY | Setting Ring |
|---|---|---|---|---|
2.7/8″ x 2.3/8″ | 39259-4 | 29255 | 16 | 39214-1 |
2.7/8″ x 2.7/8″ | 39259-2 | 24773 | 16 | 39214-2 |
3.1/2″ x 2.7/8″ | 39258-4 | 30358 | 32 | 39214-2 |
3.1/2″ x 3.1/2″ | 39258-2 | 24774 | 32 | 39214-3 |
