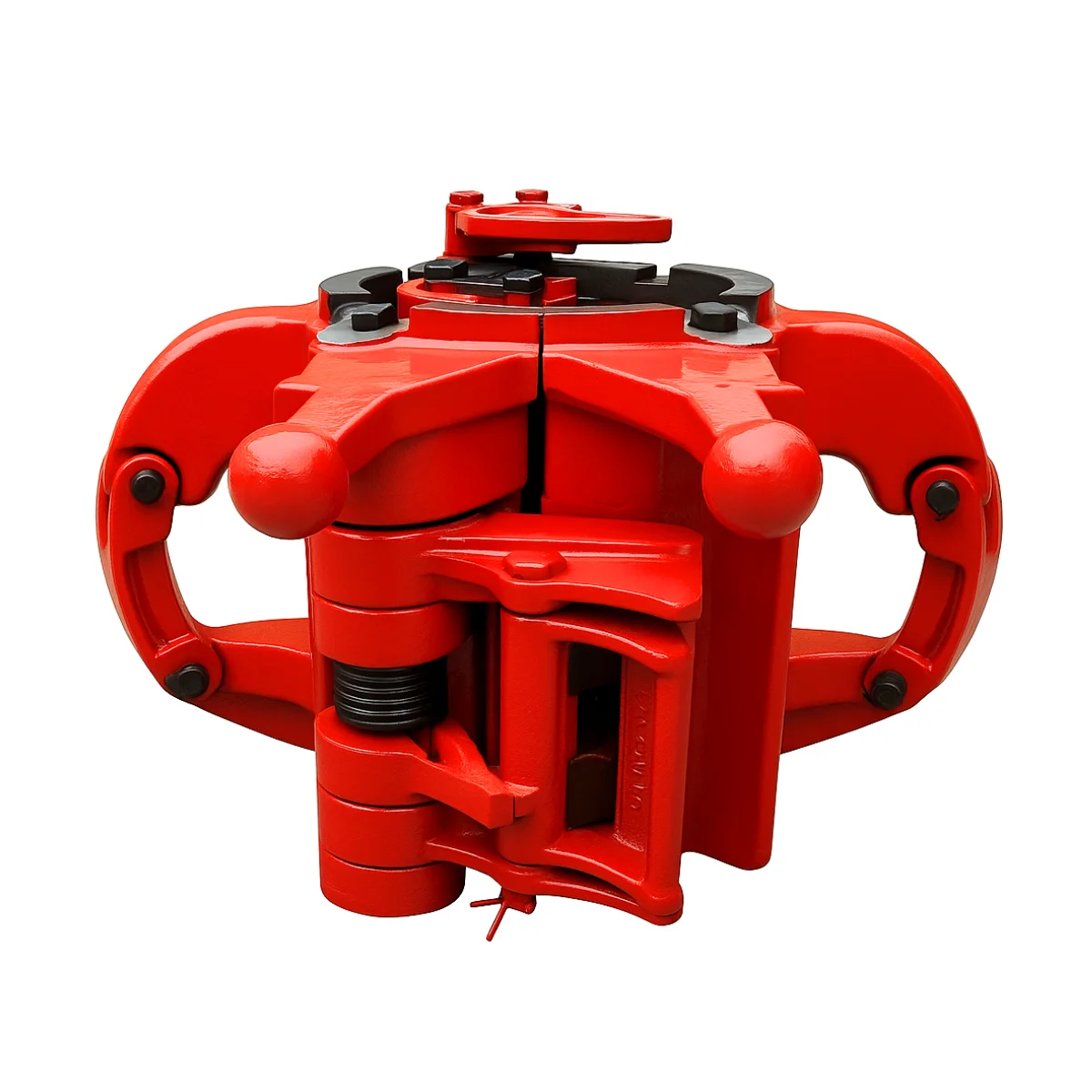

The Slip Type Center Latch Elevators (LYT Series) are engineered for safe and efficient handling of tubing and pipe in drilling and well servicing operations. These elevators combine the strength of a center latch design with four integrated slips and reducing inserts, providing a secure grip on the pipe while minimizing marking or damage.
Built with operator safety in mind, the LYT elevators feature a double latch safety system to reduce the risk of accidental opening during operation. They are available in sizes ranging from 3/4″ (1.050″) to 2. 1/16″, with a rated load capacity of 20 tons.
Manufactured from high-grade alloy steel, each elevator undergoes rigorous load testing and magnetic particle inspection, ensuring maximum durability, strength, and compliance. Fully API Spec 8C certified, the Slip Type Center Latch Elevators deliver reliability and performance in demanding oilfield environments.
Features & Benefits
- Spectrum’s Rotary Slip/Drill Pipe Slips are designed to be equivalent to those offered by NOV a well-known manufacturer of oilfield equipment.
- Our Rotary Slips are designed, manufactured, and rigorously tested in accordance with API-7K specifications.
- The slips are hardened and tempered to enhance their durability, increase their lifespan, and provide exceptional strength, which improves their resistance to wear and tear.
- These slips can be used in conjunction with slip bowls to fit 17.1/2″, 20.1/2″, 27.1/2″, and 37.1/2″ master bushings.
- The slips come with a taper of 4 inches per foot on the diameter, as per the API-7K specification.
- The inserts can be replaced at the rig site itself in a very short time by simply removing the locking arrangements and retainers.
- The products are manufactured in compliance with HSE (Health, Safety, and Environment) guidelines.
- Easy Installation.
- The products undergo a series of Non-Destructive Testing and Destructive Testing for quality control, ensuring the safety and reliability of the product at the rig site.
- Excellent durability.
- We provide the fastest delivery with a short lead time.
- We maintain a substantial inventory of spares to ensure their availability with very short lead times, minimizing downtime on the rig.
PARTS NUMBER & SIZES
| Part No. | Tons | Size Range | Size of Links | Weight |
|---|---|---|---|---|
28750 | 20 | 3/4″ – 2.1/16″ | 7/8″ – 2.1/4″ | 57 |
| Size | Slip Assembly | Insert | Insert QTY | Setting Ring |
|---|---|---|---|---|
2.1/16″ x 3/4″ (1.050″) | 28745-7 | 29370 | 8 | 28735 |
2.1/16″ x 1″ (1.315″) | 28745-2 | 28749 | 8 | 28736 |
2.1/16″ x 1.1/4″ (1.660″) | 28745–3 | 28778 | 8 | 28784 |
2.1/16″ x 1.1/2″ (1.900″) | 28745-4 | 28775 | 8 | 28783 |
2.1/16″ x 2.000″ | 28745-5 | 28772 | 8 | 28737 |
2.1/16″ x 2.1/16″ | 28745-6 | 28772 | 8 | 28782 |
