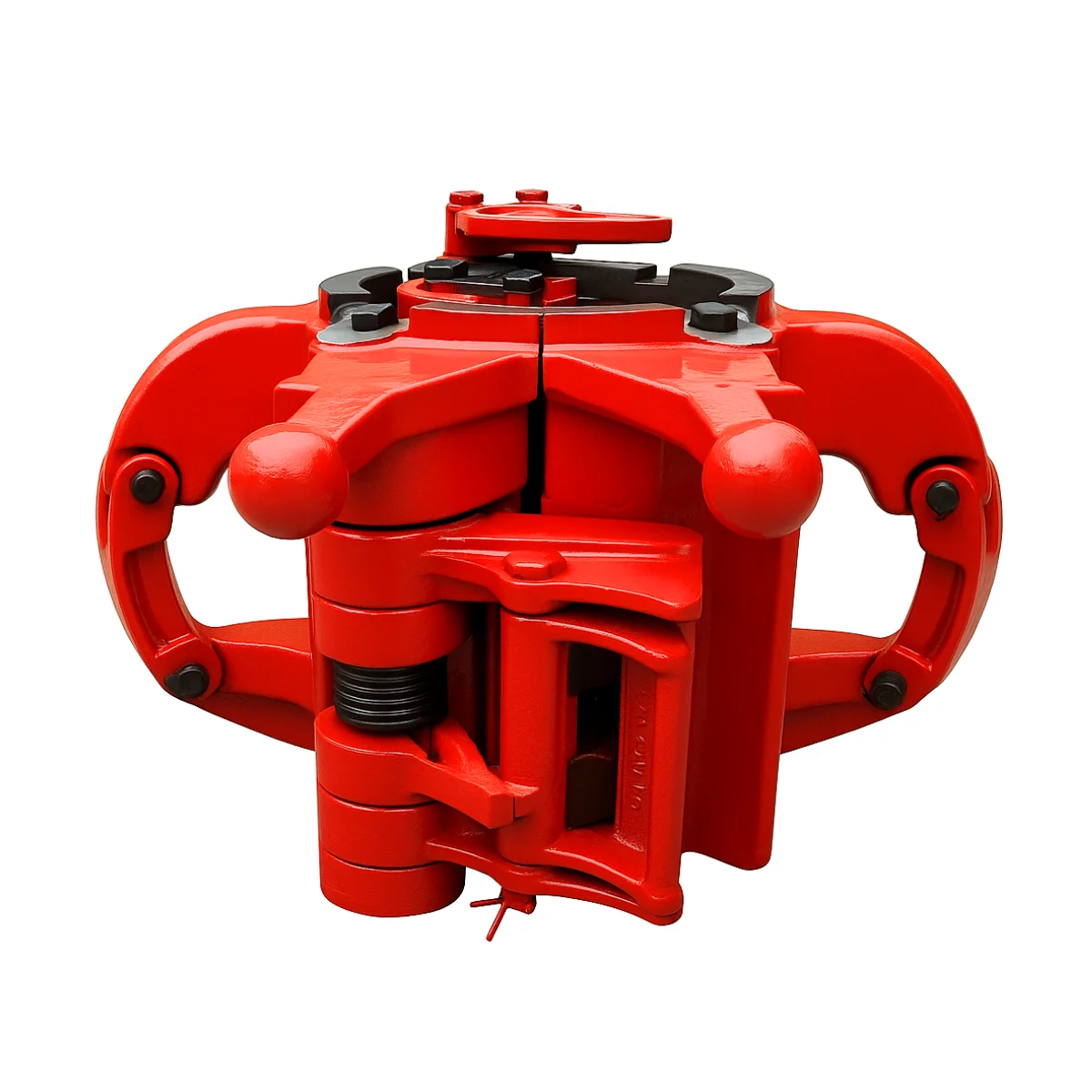

Slip Type Elevator – MYT
Slip Type Elevator – MYT
The Slip Type Elevator – MYT Center Latch Series is a versatile solution for safely and efficiently handling tubing and pipe in drilling and well servicing operations. Designed with four slips and reducing inserts, these elevators provide a secure grip while minimizing pipe marking and damage.
To enhance operator safety, the Slip Type Elevator – MYT series features a double latch system that reduces the risk of accidental opening. Available in sizes from 3/4″ (1.050″) to 2.7/8″, these elevators offer a rated load capacity of 40 tons, making them well-suited for demanding applications.
Built from high-strength alloy steel and subjected to rigorous load testing and magnetic particle inspection, every MYT elevator ensures long-lasting performance and reliability. Fully API Spec 8C certified, the Slip Type Elevator – MYT delivers trusted strength, safety, and durability for critical oilfield operations.
Features & Benefits
- Spectrum’s Rotary Slip/Drill Pipe Slips are designed to be equivalent to those offered by NOV a well-known manufacturer of oilfield equipment.
- Our Rotary Slips are designed, manufactured, and rigorously tested in accordance with API-7K specifications.
- The slips are hardened and tempered to enhance their durability, increase their lifespan, and provide exceptional strength, which improves their resistance to wear and tear.
- These slips can be used in conjunction with slip bowls to fit 17.1/2″, 20.1/2″, 27.1/2″, and 37.1/2″ master bushings.
- The slips come with a taper of 4 inches per foot on the diameter, as per the API-7K specification.
- The inserts can be replaced at the rig site itself in a very short time by simply removing the locking arrangements and retainers.
- The products are manufactured in compliance with HSE (Health, Safety, and Environment) guidelines.
- Easy Installation.
- The products undergo a series of Non-Destructive Testing and Destructive Testing for quality control, ensuring the safety and reliability of the product at the rig site.
- Excellent durability.
- We provide the fastest delivery with a short lead time.
- We maintain a substantial inventory of spares to ensure their availability with very short lead times, minimizing downtime on the rig.
PARTS NUMBER & SIZES
| Part No. | Tons | Size Range | Size of Links | Weight |
|---|---|---|---|---|
29328 | 40 | 3/4″ – 2.7/8″ | 1.1/4″ – 2.3/4″ | 157 |
| Size | Slip Assembly | Insert | Insert QTY | Setting Ring |
|---|---|---|---|---|
2.7/8″ x 3/4″ (1.050″) | 29343-8 | 29259-1 | 8 | 29354-1 |
2.7/8″ x 1″ (1.315″) | 29343-7 | 29259 | 8 | 29354 |
2.7/8″ x 1.1/4″ (1.660″) | 29343-6 | 29258 | 8 | 29353 |
2.7/8″ x 1.1/2″ (1.900″) | 29343-5 | 29257 | 8 | 29352 |
2.7/8″ x 2.000″ | 29343-4 | 29256 | 8 | 29351 |
2.7/8″ x 2.1/16″ | 29343-3 | 29256 | 8 | 29350 |
2.7/8″ x 2.3/8″ | 29343-2 | 29255 | 8 | 293445 |
2.7/8″ x 2.7/8″ | 29343-1 | 24773 | 8 | 29348 |
