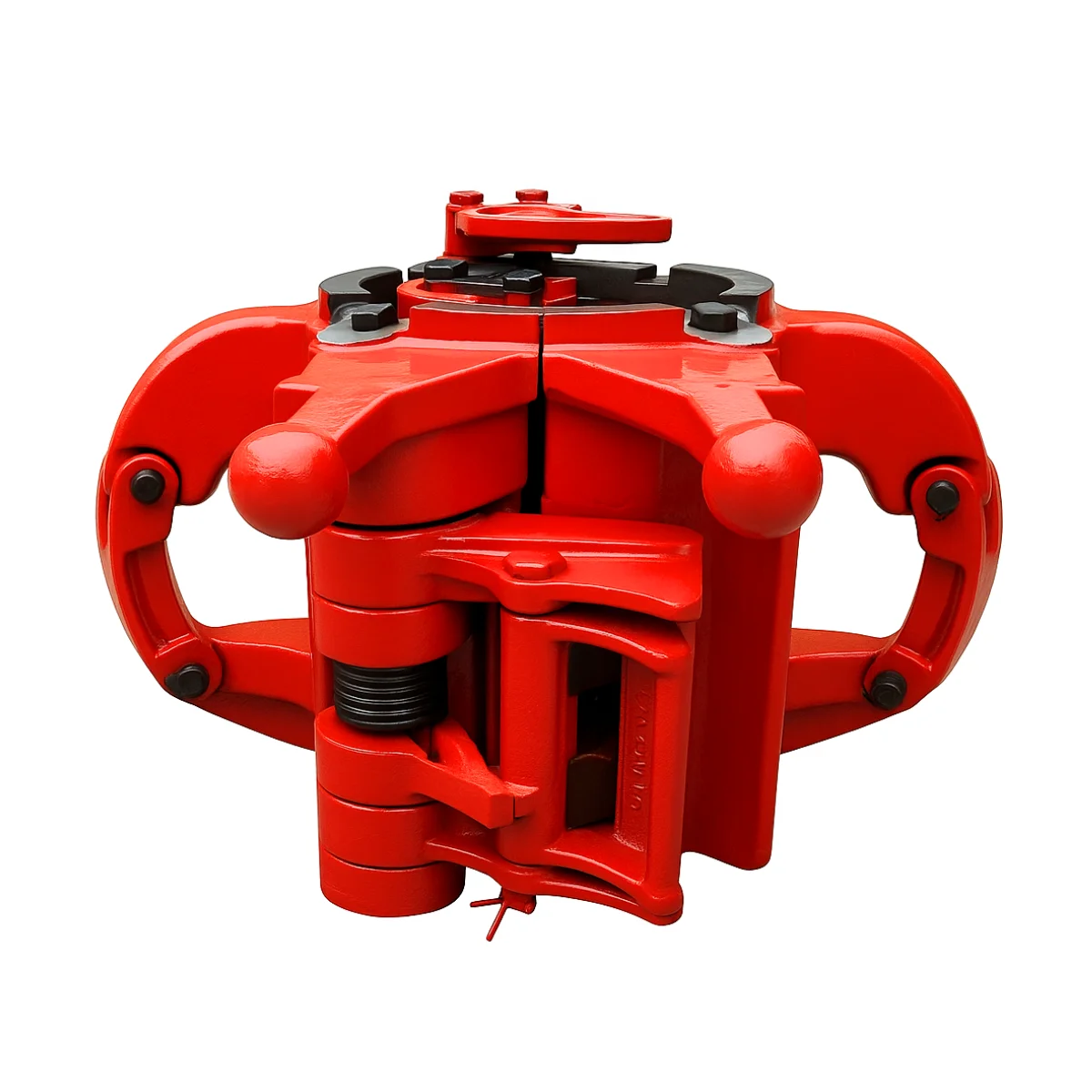

Slip Type Elevator – YC and MYC
Slip Type Elevator – YC and MYC
The Slip Type Elevator – YC and MYC Series is are robust combination tool designed for the safe and efficient handling of tubing and pipe in drilling and well servicing operations. Equipped with four slips and reducing inserts, these elevators provide a firm, secure grip while minimizing pipe surface marking.
Both series feature a double latch safety system, reducing the risk of accidental opening during critical operations. The YC model has a rated load capacity of 75 tons, while the MYC model offers a higher capacity of 125 tons. Each is designed for pipe sizes ranging from 3.1/2″ to 7″, making them suitable for a wide range of demanding applications.
Manufactured from high-strength alloy steel, every YC and MYC elevator is rigorously load tested and magnetic particle inspected to ensure durability, performance, and safety. Fully API Spec 8C certified, these elevators deliver reliability and strength in challenging oilfield environments.
Features & Benefits
- Spectrum’s Rotary Slip/Drill Pipe Slips are designed to be equivalent to those offered by NOV a well-known manufacturer of oilfield equipment.
- Our Rotary Slips are designed, manufactured, and rigorously tested in accordance with API-7K specifications.
- The slips are hardened and tempered to enhance their durability, increase their lifespan, and provide exceptional strength, which improves their resistance to wear and tear.
- These slips can be used in conjunction with slip bowls to fit 17.1/2″, 20.1/2″, 27.1/2″, and 37.1/2″ master bushings.
- The slips come with a taper of 4 inches per foot on the diameter, as per the API-7K specification.
- The inserts can be replaced at the rig site itself in a very short time by simply removing the locking arrangements and retainers.
- The products are manufactured in compliance with HSE (Health, Safety, and Environment) guidelines.
- Easy Installation.
- The products undergo a series of Non-Destructive Testing and Destructive Testing for quality control, ensuring the safety and reliability of the product at the rig site.
- Excellent durability.
- We provide the fastest delivery with a short lead time.
- We maintain a substantial inventory of spares to ensure their availability with very short lead times, minimizing downtime on the rig.
PARTS NUMBER & SIZES
| Part No. | Tons | Size Range | Size of Links | Weight |
|---|---|---|---|---|
24140 | 75 | 3.1/2″ – 7″ | 2.1/4″ – 2.3/4″ | 441 |
24139 | 125 | 3.1/2″ – 7″ | 2.1/4″ – 2.3/4″ | 465 |
| Size | Slip Assembly | Insert | Insert QTY | Setting Ring | Guide Plate |
|---|---|---|---|---|---|
4.1/2″ x 3.1/2″ | 34931 | 24779 | 16 | 34932 | 26827-1 |
4.1/2″ x 4″ | 26830 | 24781 | 16 | 30209 | 26827 |
4.1/2″ x 4.1/2″ | 24072-5 | 16408 | 16 | 30219 | 24071-4 |
5.1/2″ x 5″ | 24072-7 | 24783 | 16 | 30220 | 24071 |
7″ x 6.5/8″ | 24077-7 | 24748 | 24 | 30226 | 24071-3 |
7″ x 7″ | 24077-1 | 16407 | 24 | 30229 | 24071-2 |
