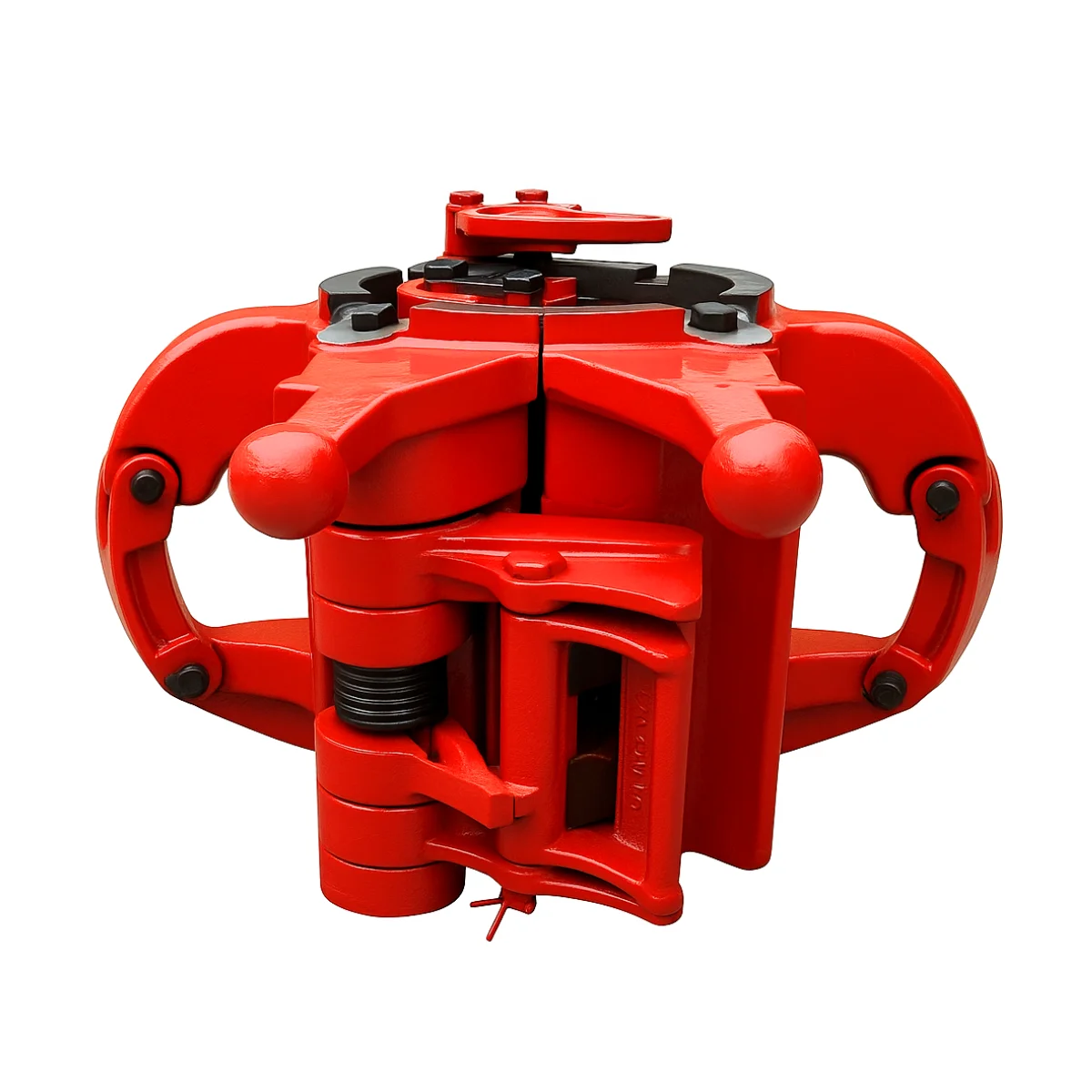

Slip Type Elevator – YT
Slip Type Elevator – YT
The Slip Type Elevator – YT Series is designed as a reliable combination tool for the safe and efficient handling of tubing and pipe in drilling operations. Equipped with four slips and reducing inserts, these elevators ensure a secure grip while minimizing marking on the pipe surface.
For added safety, the YT series features a double-latch locking system to minimize the risk of accidental opening during use. With a rated load capacity of 75 tons and a size range from 1″ (1.315″) to 3.1/2″, these elevators are suitable for a wide range of applications.
Manufactured from high-quality alloy steel, each unit undergoes rigorous load testing and magnetic particle inspection to ensure durability, performance, and safety. Fully API Spec 8C certified, the Slip Type Elevator – YT delivers dependable strength and reliability in demanding oilfield environments.
Features & Benefits
- Spectrum’s Rotary Slip/Drill Pipe Slips are designed to be equivalent to those offered by NOV a well-known manufacturer of oilfield equipment.
- Our Rotary Slips are designed, manufactured, and rigorously tested in accordance with API-7K specifications.
- The slips are hardened and tempered to enhance their durability, increase their lifespan, and provide exceptional strength, which improves their resistance to wear and tear.
- These slips can be used in conjunction with slip bowls to fit 17.1/2″, 20.1/2″, 27.1/2″, and 37.1/2″ master bushings.
- The slips come with a taper of 4 inches per foot on the diameter, as per the API-7K specification.
- The inserts can be replaced at the rig site itself in a very short time by simply removing the locking arrangements and retainers.
- The products are manufactured in compliance with HSE (Health, Safety, and Environment) guidelines.
- Easy Installation.
- The products undergo a series of Non-Destructive Testing and Destructive Testing for quality control, ensuring the safety and reliability of the product at the rig site.
- Excellent durability.
- We provide the fastest delivery with a short lead time.
- We maintain a substantial inventory of spares to ensure their availability with very short lead times, minimizing downtime on the rig.
PARTS NUMBER & SIZES
| Part No. | Tons | Size Range | Size of Links | Weight |
|---|---|---|---|---|
23105 | 75 | 1″ – 3.1/2″ | 2.1/4″ – 2.3/4″ | 356 |
| Size | Slip Assembly | Insert | Insert QTY | Setting Ring |
|---|---|---|---|---|
2.7/8″ x 1″ (1.315″) | 23108-11 | 29259 | 12 | 29001 |
2.7/8″ x 1.1/4″ (1.660″) | 23108-10 | 29258 | 12 | 27810 |
2.7/8″ x 1.1/2″ (1.900″) | 23108-9 | 29257 | 12 | 27811 |
2.7/8″ x 2″ | 23108-8 | 29256 | 12 | 27821 |
2.7/8″ x 2.1/16″ | 23108-7 | 29256 | 12 | 27812 |
2.7/8″ x 2.3/8″ | 23108-6 | 29255 | 12 | 27694 |
2.7/8″ x 2.7/8″ | 23108-4 | 24773 | 12 | 27695 |
3.1/2″ x 2.7/8″ | 23108-3 | 30358 | 24 | 27695 |
3.1/2″ x 3.1/2″ | 23108-5 | 24774 | 24 | 27813 |
