Sucker Rod Type Elevator

Sucker Rod Type Elevator

Sucker Rod Type Elevator

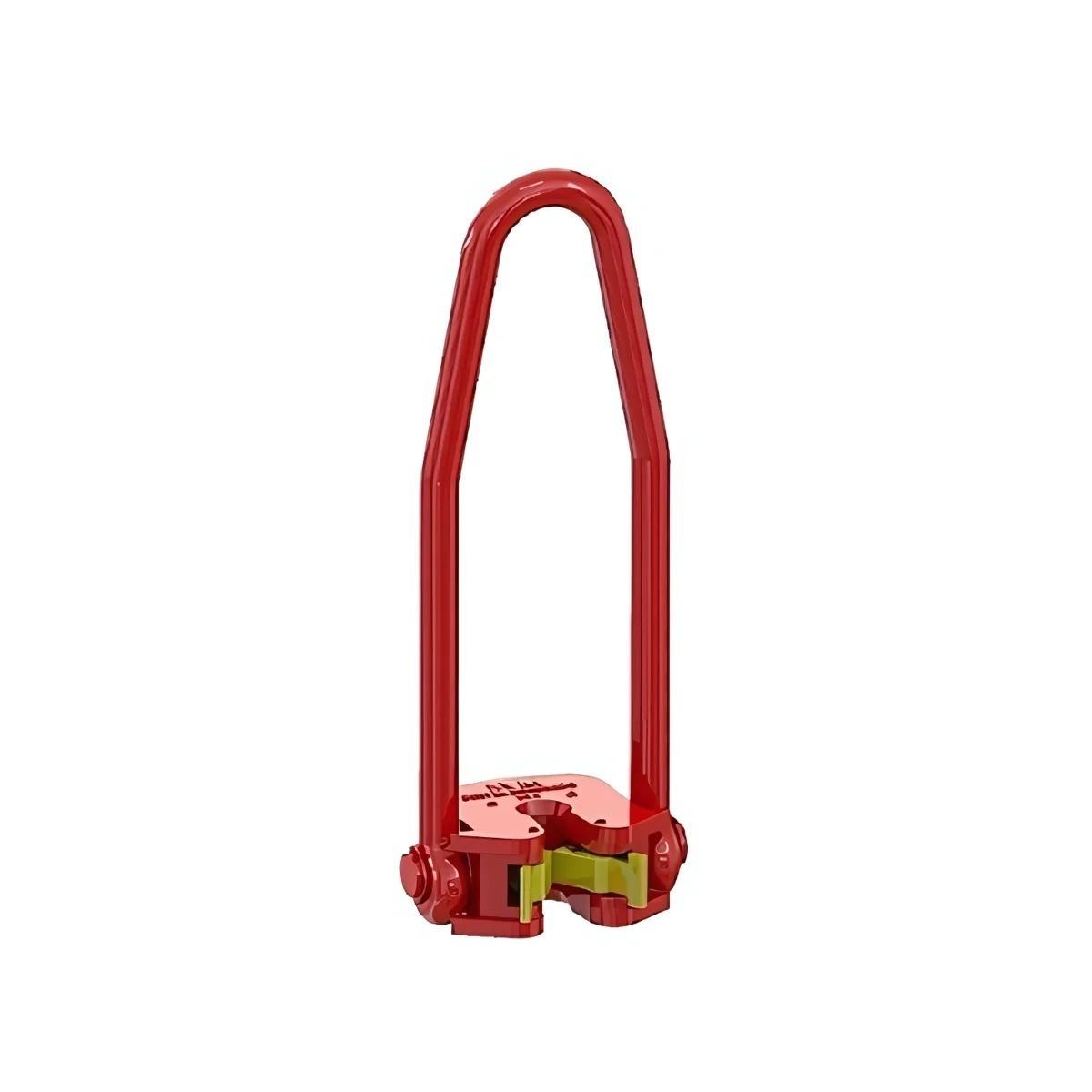

The “SR” Sucker Rod Elevator from Spectrum Drilling Tools International is designed for versatility in workovers and well servicing operations, providing safe and reliable handling of sucker rods.

This elevator is available for rod sizes ranging from 5/8″ to 1 .1/4″ and carries an API-rated capacity of 20 tons. It features a spring-loaded latch system, ensuring that the rod can only be released by the operator, enhancing safety during use.

Manufactured from high-strength alloy steel, the bail and body are heat-treated for maximum durability and performance. All steel specifications are fully certified, ensuring compliance with industry standards.

Engineered for strength, safety, and reliability, the Spectrum Drilling Tools International “SR” Sucker Rod Elevator is a trusted choice for demanding oilfield operations.

Features & Benefits

Design Features
  • Spectrum’s Rotary Slip/Drill Pipe Slips are designed to be equivalent to those offered by NOV  a well-known manufacturer of oilfield equipment.
  • Our Rotary Slips are designed, manufactured, and rigorously tested in accordance with API-7K specifications.
  • The slips are hardened and tempered to enhance their durability, increase their lifespan, and provide exceptional strength, which improves their resistance to wear and tear.
  • These slips can be used in conjunction with slip bowls to fit 17.1/2″, 20.1/2″, 27.1/2″, and 37.1/2″ master bushings.
  • The slips come with a taper of 4 inches per foot on the diameter, as per the API-7K specification.
  • The inserts can be replaced at the rig site itself in a very short time by simply removing the locking arrangements and retainers.
Health, Safety and Environment
  • The products are manufactured in compliance with HSE (Health, Safety, and Environment) guidelines.
  • Easy Installation.
  • The products undergo a series of Non-Destructive Testing and Destructive Testing for quality control, ensuring the safety and reliability of the product at the rig site.
  • Excellent durability.
Lead Time
  • We provide the fastest delivery with a short lead time.
  • We maintain a substantial inventory of spares to ensure their availability with very short lead times, minimizing downtime on the rig.

PARTS NUMBER & SIZES

Part No. Type Tons Size Weight
58101
SR
20
5/8″ – 3/4″
30
58102
SR
20
3/4″ – 7/8″
30
58103
SR
20
1″
30
58104
SR
20
1.1/8″
31
58105
SRP
20
5/8″ – 1.1/8″
34
58106
PLATE
5/8″ – 3/4″
0,25
58107
PLATE
3/4″ – 7/8″
0,25
58108
PLATE
1″
0,25
58109
PLATE
1.1/8″
0,25
