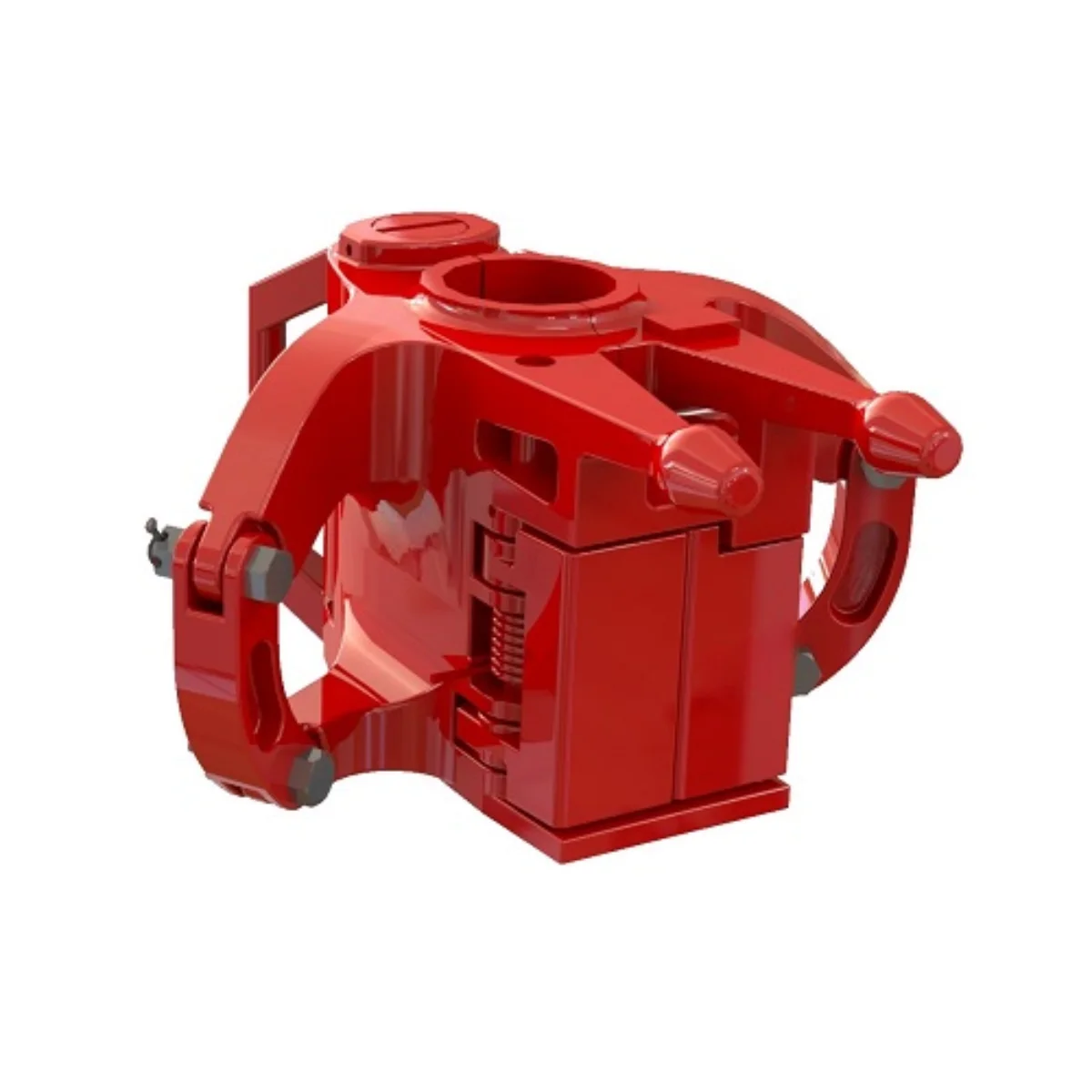

TA Center Latch 90° Collar Type Elevator
TA Center Latch 90° Collar Type Elevator
The TA Center Latch 90° Collar Type Elevator from Spectrum Drilling Tools International are designed for safe and efficient handling of plain and upset tubing, drill collars, and casing with a square shoulder. Built with operator safety in mind, these elevators feature a double latch safety system that minimizes the risk of accidental opening during operations.
Available in sizes from 1.05” to 11.3/4”, the TA series offers load capacities of 35, 65, 100, and 150 tons, making them suitable for a wide range of drilling applications. Each elevator is manufactured from high-strength alloy steel, undergoes rigorous load testing and magnetic particle inspection, and is fully certified to API Spec 8C.
Engineered for reliability, durability, and compliance with industry standards, Spectrum Drilling Tools International TA Center Latch 90° Collar Type Elevator deliver trusted performance in demanding oilfield environments.
Features & Benefits
- Spectrum’s Rotary Slip/Drill Pipe Slips are designed to be equivalent to those offered by NOV a well-known manufacturer of oilfield equipment.
- Our Rotary Slips are designed, manufactured, and rigorously tested in accordance with API-7K specifications.
- The slips are hardened and tempered to enhance their durability, increase their lifespan, and provide exceptional strength, which improves their resistance to wear and tear.
- These slips can be used in conjunction with slip bowls to fit 17.1/2″, 20.1/2″, 27.1/2″, and 37.1/2″ master bushings.
- The slips come with a taper of 4 inches per foot on the diameter, as per the API-7K specification.
- The inserts can be replaced at the rig site itself in a very short time by simply removing the locking arrangements and retainers.
- The products are manufactured in compliance with HSE (Health, Safety, and Environment) guidelines.
- Easy Installation.
- The products undergo a series of Non-Destructive Testing and Destructive Testing for quality control, ensuring the safety and reliability of the product at the rig site.
- Excellent durability.
- We provide the fastest delivery with a short lead time.
- We maintain a substantial inventory of spares to ensure their availability with very short lead times, minimizing downtime on the rig.
PARTS NUMBER & SIZES
| Part No. | Tons | Size Range | Size of Links | Weight |
|---|---|---|---|---|
32387 | 35 | 1.050″ – 2.7/8″ | 7/8″ – 1.3/4″ | 40 |
32385 | 65 | 1.660″ – 2.7/8″ | 1.1/4″ – 2.3/4″ | 65 |
32386 | 65 | 3.1/2″ – 4.1/2″ | 1.1/4″ – 2.3/4″ | 83 |
32383 | 100 | 2.3/8″ – 2.7/8″ | 1.3/4″ – 2.3/4″ | 125 |
32384 | 100 | 3.1/2″ – 4.1/2″ | 1.3/4″ – 2.3/4″ | 158 |
29960 | 100 | 5.1/2″ – 8.5/8″ | 1.3/4″ – 2.3/4″ | 352 |
32754 | 150 | 4.1/2″ – 8.5/8″ | 1.3/4″ – 3.1/2″ | 462 |
39342 | 150 | 8.1/2″ – 11.3/4″ | 1.3/4″ – 3.1/2″ | 545 |
